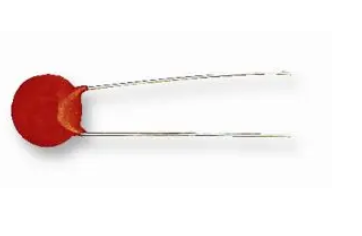

15pF/50V, condensator ceramic, RM2.5, GOG/NPO, MCCHU5150J5, MULTICOMP

15pf/50V ceramic RM2.5

Specifications

Capacitance Range : 15pF

Capacitance Tolerance : ±5%

Operating Temperature Range : -25°C to +85°C

Rated Working Voltage : 50V

Q Factor at 1MHz, 1 ±0.2Vrms, 25°C : C ≥30 pF : Q ≥1,000

C <30 pF : Q ≥400 +20°C

Insulation Resistance (IR) at 25°C : 10,000MΩ minimum

Dielectric Strength : 3 times the rated WVDC

Testing Parameters : 1MHz ±20%, 1 ±0.2Vrms

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.
