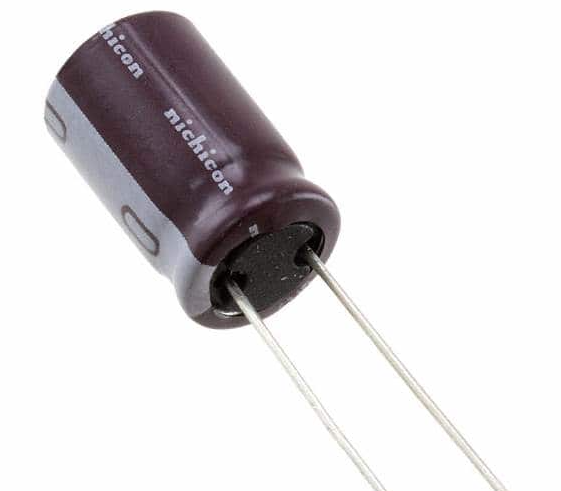

2.2uF/400V, condensator electrolitic, 10x17mm, RM5, NICHICON

Capacitance 2.2 µF

Tolerance ±20%

Voltage - Rated 400 V

ESR (Equivalent Series Resistance)

Lifetime @ Temp. 2000 Hrs @ 105°C

Operating Temperature -40°C ~ 105°C

Polarization Polar

Applications General Purpose

Ripple Current @ Low Frequency 27 mA @ 120 Hz

Ripple Current @ High Frequency 43.2 mA @ 10 kHz

Lead Spacing 0.197" (5.00mm)

Size / Dimension 0.394" Dia (10.00mm)

Height - Seated (Max) 0.689" (17.50mm)

Surface Mount Land Size -

Mounting Type Through Hole

Package / Case Radial, Can

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.
