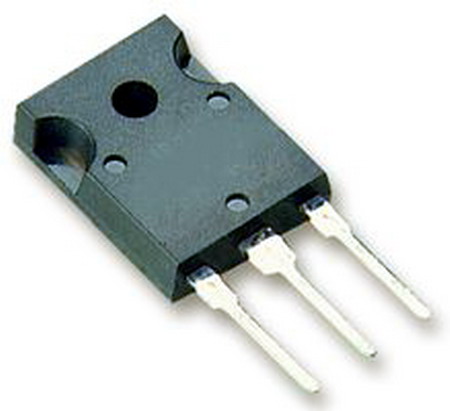

AOK40B60D1, IGBT, 80A, 600V, 278W, Alpha & Omega

COD: 86841

Preț orientativ: 42,78 RON

  • Part Status Active
    IGBT Type - WITH DIODE
    Voltage - Collector Emitter Breakdown (Max) 600V
    Current - Collector (Ic) (Max) 80A
    Current - Collector Pulsed (Icm) 140A
    Vce(on) (Max) @ Vge, Ic 2.4V @ 15V, 40A
    Power - Max 278W
    Switching Energy 1.55mJ (on), 300µJ (off)
    Input Type Standard
    Gate Charge 45nC
    Td (on/off) @ 25°C 29ns/74ns
    Test Condition 400V, 40A, 7.5 Ohm, 15V
    Reverse Recovery Time (trr) 127ns
    Operating Temperature -55°C ~ 150°C (TJ)
    Mounting Type Through Hole
    Package / Case TO-247-3
    Supplier Device Package TO-247
