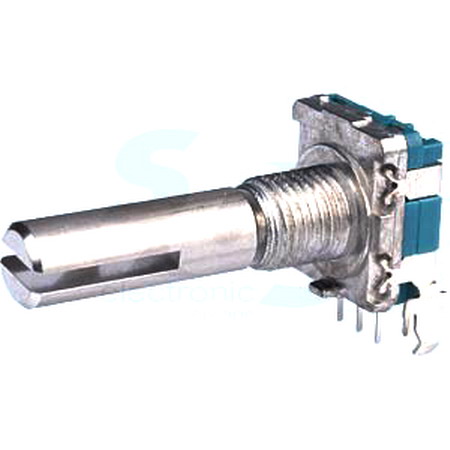

Encoder 11mm, orizontal, 15imp/30pos, STEC11B01, ALPS

STEC11B01

Descriere: Encoder 11mm hor15imp/30pos Met Shaft 6/25 slot, switch
Producator: ALPS

Encoder Technology: Mechanical

Supply Voltage Min: -

Encoder Type: Incremental

Supply Voltage Max: 5V

Encoder Resolution: 15PPR

No. of Channels: 2Channels

Rotational Speed Max: -

No. of Detents: 30 Detens

Orientation: Horizontal

Push Switch: With Push Swtch

Encoder Output: Quadrature

Encoder Mounting: Bushing Mont, Through Hole

Product Range: EC11B

Shaft Type: D Type Flated End

Shaft Length: 20mm

Shaft Diameter: 6mm

Operating Temperature Min: -40°C

Operating Temperature Max: 85°C

IP Rating: -

Termination: Solder Pin

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.
