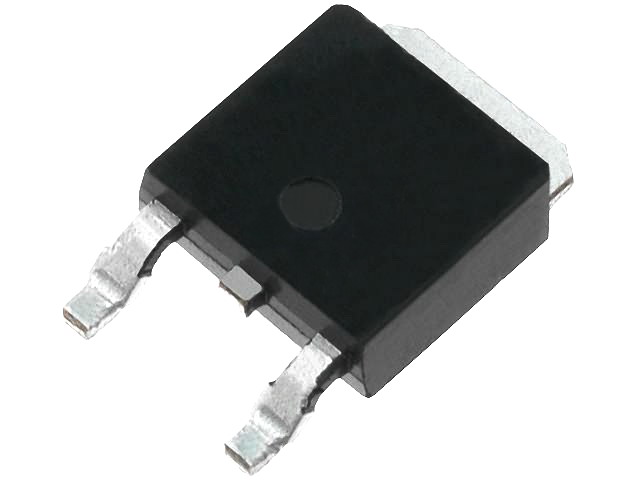

FDD8878, N-MOSFET, 30V, 40A, DPAK

FAIRCHILD SEMICONDUCTOR - FDD8878 - MOSFET, N CH, 30V, 40A, TO-252AA-3

MOSFET, N CH, 30V, 40A, TO-252AA-3

Transistor Polarity: N Channel

Continuous Drain Current Id: 40A

Drain Source Voltage Vds: 30V

On Resistance Rds(on): 0.011ohm

Rds(on) Test Voltage Vgs: 10V

Threshold Voltage Vgs: 1.2V

Power Dissipation Pd: 40W

Operating Temperature Min: -55°C

Operating Temperature Max: 175°C

Transistor Case Style: TO-252AA

No. of Pins: 3

MSL: MSL 1 - Unlimited

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.

FDD8878, N-MOSFET, 30V, 40A, DPAK
