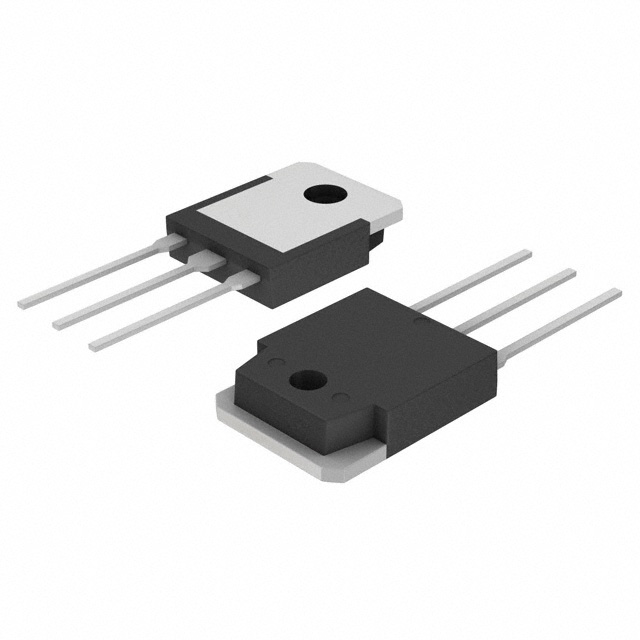

FQA13N50CF, N-MOSFET, 500V, 15A, TO3P, ONSEMI

Manufacturer: Fairchild Semiconductor

Product Category: MOSFET

RoHS: RoHS Compliant Details

Id - Continuous Drain Current: 15 A

Vds - Drain-Source Breakdown Voltage: 500 V

Rds On - Drain-Source Resistance: 480 mOhms

Transistor Polarity: N-Channel

Vgs - Gate-Source Breakdown Voltage: 30 V

Maximum Operating Temperature: + 150 C

Pd - Power Dissipation: 218 W

Mounting Style: Through Hole

Package / Case: TO-3P-3

Packaging: Tube

Brand: Fairchild Semiconductor

Channel Mode: Enhancement

Configuration: Single

Fall Time: 100 ns

Minimum Operating Temperature: - 55 C

Rise Time: 100 ns

Series: FQA13N50

Typical Turn-Off Delay Time: 130 ns

Part # Aliases: FQA13N50CF_NL

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.

FQA13N50CF, N-MOSFET, 500V, 15A, TO3P, ONSEMI
