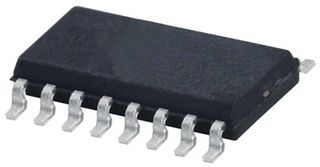

HCPL-316J, Optocuplor; SMD; OUT: controler IGBT, SO16, AVAGO

Furnizor:  AVAGO TECHNOLOGIES

HCPL-316J-000E

RoHS :  Da
Descriere
OPTOCOUPLER, 2.5A, GATE DRIVE O/P
No. of Channels:1
Isolation Voltage:3750VAC
Output Type:Gate Drive
Input Current:22mA
Output Voltage:30V
Opto Case Style:SOIC
No. of Pins:16
Approval Bodies:UL, CSA, VDE 0884
CMR:15kV/µs
Collector Emitter Voltage Vces:1200V
Current Ic Continuous a Max:150A
Fall Time tf:500ns
Operating Temperature Max:100C
Operating Temperature Range:-40C to +100C
Optocoupler Type:Gate Drive Output
Output Voltage Max:30V
Package / Case:SOIC-16
Peak Output Current:2.5A
Rise Time:500ns
Temperature Operating Min:-40C
Voltage Vcc Max:30V
Voltage Vcc Min:15V
Voltage Vcm:1500V
