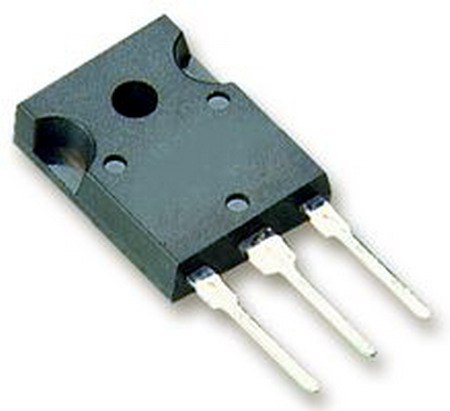

IXFH24N90P, N-MOSFET, 24A, 900V, 660W, IXYS

IXFH24N90P, N-MOSFET, 24A, 900V, IXYS

Continuous Drain Current Id: 24A

Drain Source Voltage Vds: 900V

MSL: -

No. of Pins: 3

On Resistance Rds(on): 0.42ohm

Operating Temperature Max: 150°C

Power Dissipation Pd: 660W

Rds(on) Test Voltage Vgs: 10V

Threshold Voltage Vgs: 3.5V

Transistor Case Style: TO-247

Transistor Polarity: N Channel

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.

IXFH24N90P, N-MOSFET, 24A, 900V, 660W, IXYS
