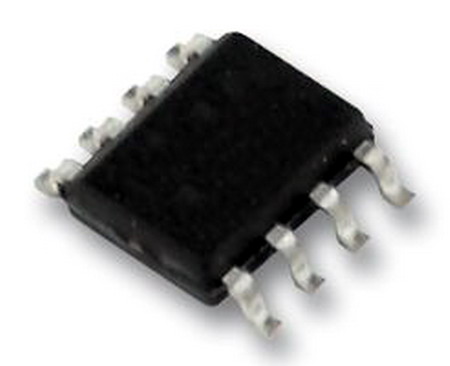

L4949ED, Fixed LDO Voltage Regulator, 5V to 28V, 5Vout, STMICROELECTRONICS

L4949ED-SMD Cir.int.,regulator de tens.M-Funct.Low Drop 5V 0,1A SO8 RoHS
Producator: ST MICROELECTRONICS

Manufacturer: STMicroelectronics

Product Category: LDO Voltage Regulators

RoHS: Details

Mounting Style: SMD/SMT

Package/Case: SOIC-8

Output Voltage: 5 V

Output Current: 100 mA

Number of Outputs: 1 Output

Polarity: Positive

Quiescent Current: 300 uA

Input Voltage MAX: 28 V

Input Voltage MIN: 5 V

Output Type: Fixed

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 150 C

Load Regulation: 30 mV

Series: L4949ED

Dropout Voltage: 0.1 V

Packaging: Tube

Height: 1.65 mm (Max)

Length: 5 mm (Max)

Width: 4 mm (Max)

Brand: STMicroelectronics

Dropout Voltage - Max: 500 mV

Voltage Regulation Accuracy: 1 %

Ib - Input Bias Current: 200 uA

Line Regulation: 20 mV

Product Type: LDO Voltage Regulators

Reference Voltage: 1.23 V

Subcategory: PMIC - Power Management ICs

Simbol original: L4949ED

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.
