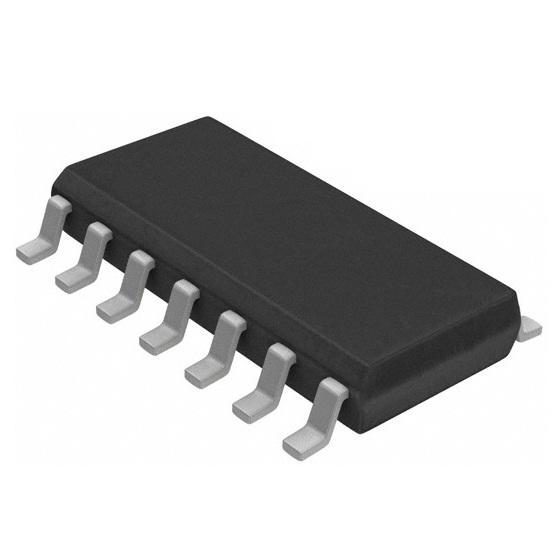

L6566B, PWM Multimode Controller, Programmable, STMicroelectronics

Product Category: Switching Controllers

Manufacturer: STMicroelectronics

RoHS: RoHS Compliant Details

Topology: Flyback

Number of Outputs: 1 Output

Switching Frequency: 10 kHz to 300 kHz

Duty Cycle - Max: 75 %

Input Voltage: 8 V to 23 V

Output Voltage: 5 V

Output Current: 800 mA

Maximum Operating Temperature: + 150 C

Mounting Style: SMD/SMT

Package / Case: SO-Narrow-16

Packaging: Reel

Brand: STMicroelectronics

Description/Function: Multimode controller for SMPS

Fall Time: 40 ns

Isolation: Isolated

Minimum Operating Temperature: - 40 C

Operating Supply Current: 4 mA

Operating Supply Voltage: 8 V to 23 V

Output Type: Totem Pole

Product: Current Mode PWM Controllers

Rise Time: 50 ns

Series: L6566

Shutdown: Shutdown

Type: Current Mode PWM Controllers
