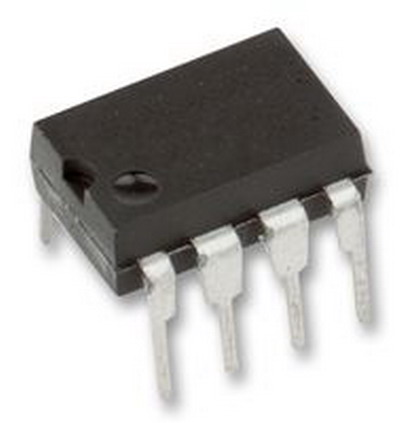

MC1350P, MOTOROLA

The MC1350 is an integrated circuit featuring wide range AGC for use as

an IF amplifier in radio and TV over an operating temperature range of 0° to +75°C.

• Power Gain: 50 dB Typ at 45 MHZ

Power Gain: 50 dB Typ at 58 MHZ

• AGC Range: 60 dB Min, DC to 45 MHz

• Nearly Constant Input & Output Admittance over the Entire AGC Range

• Y21 Constant ( –3.0 dB) to 90 MHz

• Low Reverse Transfer Admittance: < < 1.0 µmho Typ

• 12 V Operation, Single–Polarity Power Supply
