Circuit SPDT

Switch Function On-Mom

Current Rating (Amps) 15A (AC), 600mA (DC)

Voltage Rating - AC 250V

Voltage Rating - DC 125V

Actuator Type Round (Pin Plunger)

Mounting Type Chassis Mount

Termination Style Solder, Quick Connect - 0.187" (4.7mm)

Ingress Protection IP40

Features -

Operating Force 400gf

Release Force 80gf

Pretravel 0.047" (1.2mm)

Differential Travel 0.016" (0.4mm)

Overtravel 0.040" (1.0mm)

Operating Temperature -25°C ~ 80°C

Operating Position 0.579" (14.7mm)

Electrical Life 100,000 Cycles

Mechanical Life 50,000,000 Cycles

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.

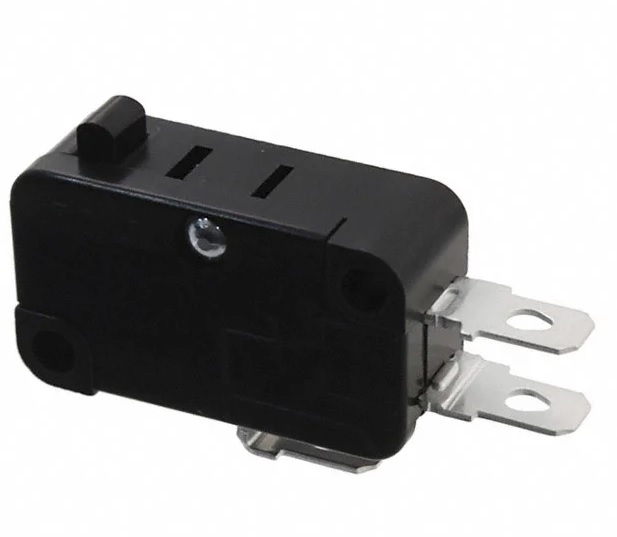

Microintrerupator SPDT; 15A, 250VAC, V-15-1A6, OMRON
