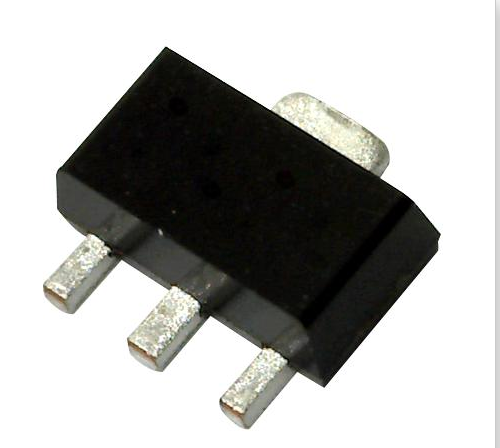

MMG3H21NT1, NPN, Broadband High Linearity Amplifier, 5V, 9mA, 6GHz, 20.5dB, NXP

Manufacturer: NXP

Product Category: RF Amplifier

RoHS: Details

Mounting Style: SMD/SMT

Package/Case: SOT-89-3

Type: General Purpose Amplifiers

Technology: InGaP

Operating Frequency: 0 Hz to 6 GHz

P1dB - Compression Point: 20.5 dBm

Gain: 19.3 dB

Operating Supply Voltage: 5 V

NF - Noise Figure: 5.5 dB

OIP3 - Third Order Intercept: 37 dBm

Operating Supply Current: 90 mA

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 85 C

Series: MMG3H21NT1

Packaging: Reel

Packaging: Cut Tape

Packaging: MouseReel

Brand: NXP Semiconductors

Input Return Loss: 20 dB

Number of Channels: 1 Channel

Product Type: RF Amplifier

Subcategory: Wireless & RF Integrated Circuits

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 4.5 V

Test Frequency: 900 MHz

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.
