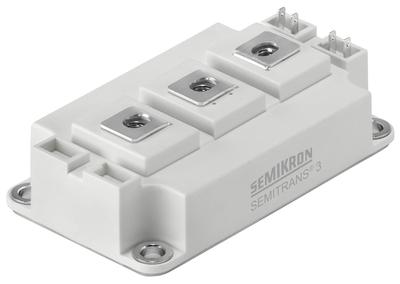

SKM300GB12E4, IGBT, 422A, 1200V, DUAL IGBT, SEMIKRON

The SKM300GB12E4 is a SEMITRANS® 3 IGBT Module for use with AC inverter drives and UPS. It features insulated copper base plate using DBC technology (Direct Bonded Copper) and increased power cycling capability.

  Half-bridge switch

  IGBT4 = 4th generation medium fast Trench IGBT (Infineon)

  CAL4 = Soft switching 4th generation CAL-diode

  Integrated gate resistor

  For higher switching frequencies up to 12kHz

  UL recognized, file number E63532



Transistor Polarity: Dual NPN DC

Collector Current: 422A

Collector Emitter Saturation Voltage Vce(on): 1.85V

Power Dissipation Pd: -

Collector Emitter Voltage V(br)ceo: 1.2kV

Transistor Case Style: Module

No. of Pins: - Operating Temperature Max: 125°C
