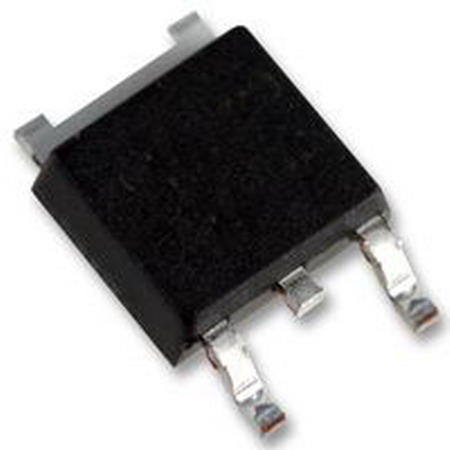

STB46N30, N-MOSFET, 300V, 53A, D2PAK

FET Type N-Channel

Technology MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss) 300V

Current - Continuous Drain (Id) @ 25°C 53A (Tc)

Drive Voltage (Max Rds On, Min Rds On) 10V

Vgs(th) (Max) @ Id 5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs 95nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds 4240pF @ 100V

Vgs (Max) ±25V

FET Feature -

Power Dissipation (Max) 250W (Tc)

Rds On (Max) @ Id, Vgs 40 mOhm @ 26.5A, 10V

Operating Temperature 150°C (TJ)

Mounting Type Surface Mount

Supplier Device Package D2PAK

Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.
