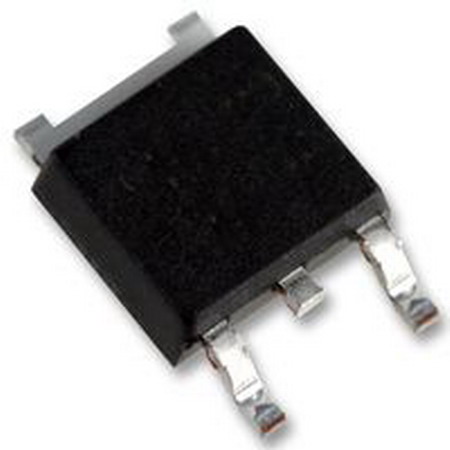

STD3NK80ZT4, N-MOSFET, 800V, 2.5A, DPAK,

STMICROELECTRONICS - STD3NK80ZT4 - MOSFET, N CH, 800V, 2.5A, DPAK

•  MOSFET, N CH, 800V, 2.5A, DPAK
• Transistor Polarity: N Channel
• Continuous Drain Current Id: 2.5A
• Drain Source Voltage Vds: 800V
• On Resistance Rds(on): 3.8ohm
• Rds(on) Test Voltage Vgs: 10V
• Threshold Voltage Vgs Typ: 3.75V
• Power Dissipation Pd: 70W
• Operating Temperature Range: -55°C to +150°C
• Transistor Case Style: D-PAK
• No. of Pins: 3
• Current Id Max: 2.5A
• Package / Case: DPAK
• Power Dissipation Pd: 70W
• Termination Type: SMD
• Transistor Type: Power MOSFET
• Voltage Vds Typ: 800V
• Voltage Vgs Max: 30V
• Voltage Vgs Rds on Measurement: 10V
