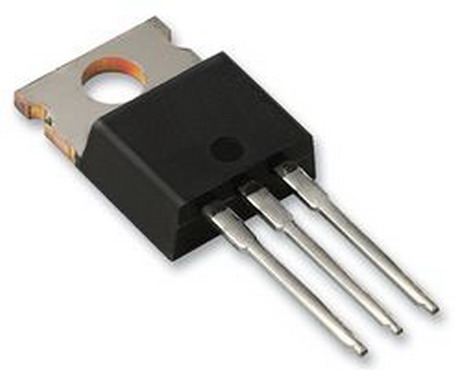

STP11NK40Z, N-MOSFET, 400V, 9A, TO220

STP11NK40Z Tranzistor N-MOSFET+Z 400V 9A 110W Rds=0,55 TO220 RoHS
Producator: ST MICROELECTRONICS Simbol original: STP11NK40Z

Product Category: MOSFET

Manufacturer: STMicroelectronics

RoHS: RoHS Compliant Details

Technology: Si

Mounting Style: Through Hole

Package/Case: TO-220FP-3

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Vds - Drain-Source Breakdown Voltage: 400 V

Id - Continuous Drain Current: 9 A

Rds On - Drain-Source Resistance: 550 mOhms

Vgs th - Gate-Source Threshold Voltage: 3.75 V

Vgs - Gate-Source Voltage: 30 V

Qg - Gate Charge: 32 nC

Minimum Operating Temperature: - 55 C

Maximum Operating Temperature: + 150 C

Configuration: Single

Channel Mode: Enhancement

Packaging: Tube

Brand: STMicroelectronics

Fall Time: 18 ns

Forward Transconductance - Min: 5.8 S

Height: 9.3 mm

Length: 10.4 mm

Pd - Power Dissipation: 30 W

Rise Time: 20 ns

Series: STB11NK40Z

Transistor Type: 1 N-Channel

Typical Turn-Off Delay Time: 40 ns

Typical Turn-On Delay Time: 20 ns

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.
