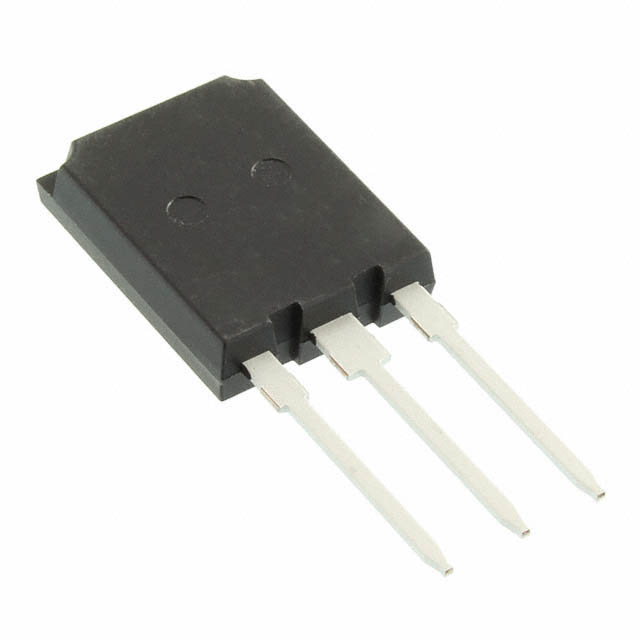

TIP36CW, SI-P, 100V, 25A, STMicroelectronics

Manufacturer: STMicroelectronics

Product Category: Bipolar Transistors - BJT

RoHS: RoHS Compliant Details

Brand: STMicroelectronics

Configuration: Single

Transistor Polarity: PNP

Collector- Base Voltage VCBO: 100 V

Collector- Emitter Voltage VCEO Max: 100 V

Emitter- Base Voltage VEBO: 5 V

Maximum DC Collector Current: 25 A

Gain Bandwidth Product fT: 3 MHz

Maximum Operating Temperature: + 150 C

Mounting Style: Through Hole

Package / Case: TO-247

DC Collector/Base Gain hfe Min: 25

Maximum Power Dissipation: 125000 mW

Minimum Operating Temperature: - 65 C

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.

TIP36CW, SI-P, 100V, 25A, STMicroelectronics
