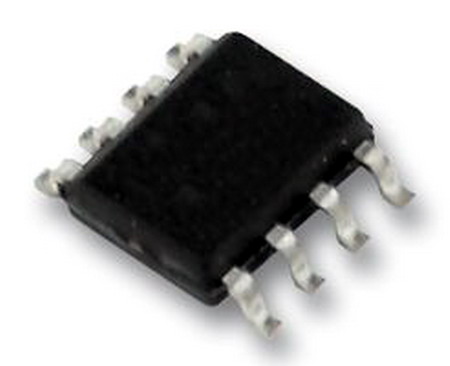

UCC28600D, PWM Controller Green, 21V-0V supply, 130 kHz, 800mA out, SOIC-8

Furnizor: UNITRODE

UCC28600

Current Mode PWM Controller 0mA 8-Pin SOIC

Green Mode Controller With Advanced Energy Saving Features

Quasi-Resonant Mode Operation for Reduced EMI and Low Switching Losses (Low Voltage Switching)

Low Standby Current for System No-Load Power Consumption to 150 mW

Low Startup Current: 25 µA Maximum

Programmable Overvoltage Protection, Line and Load

Internal Overtemperature Protection: Prevents Restart Until Temperature Fault Cleared

Current Limit Protection

Cycle-by-Cycle Power Limit

Overcurrent Hiccup Restart Mode

1-A Sink TrueDrive™, -0.75-A Source Gate Drive Output

Programmable Soft-Start

Greenmode STATUS pin (PFC Disable Function)

APPLICATIONS

Bias Supplies for LCD-Monitors, LCD-TV, PDP-TV, and Set Top Boxes

AC/DC Adapters and Offline Battery Chargers

Energy Efficient Power Supplies up to 200 W

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.
