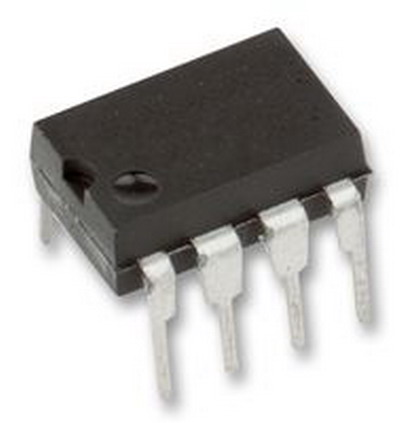

UCC3804N

UNITRODE - UCC3804N - BICMOS CURRENT MODE PWM, 3804, DIP8

Descriere
BICMOS CURRENT MODE PWM, 3804, DIP8
No. of Outputs:1
Output Voltage:5.075V
No. of Pins:8
Operating Temperature Range:0C to +70C
Case Style:DIP
Max Operating Temperature:70C
Min Temperature Operating:0C
Base Number:3804
Frequency:1MHz
IC Generic Number:3804
IC Temperature Range:Commercial
Logic Function Number:3804
Max Input Voltage:2.56V
Max Output Current:1A
Max Output Voltage:5.075V
Max Supply Voltage:12V
Termination Type:Through Hole
Power Dissipation:1W
Turn Off Threshold Voltage:8.3V
Turn On Threshold Voltage:12.5V
