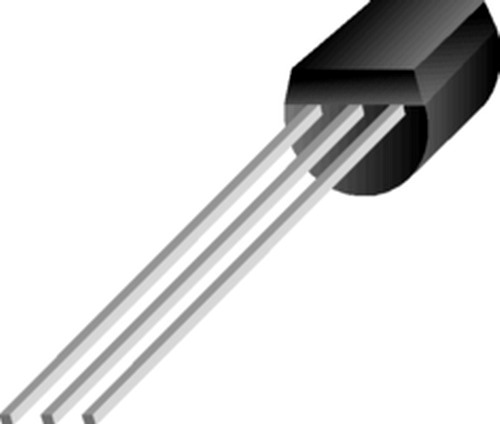

Z0607MA, Triac, 600V, 0.8A, TO92

STMICROELECTRONICS Z00607MA 1BA2 Triac, 600 V, 0.8 A, TO-92, 1.5 V

Peak Repetitive Off-State Voltage, Vdrm: 600V

On State RMS Current IT(rms): 800mA

Triac Case Style: TO-92

Gate Trigger Current Max (QI), Igt:

Gate Trigger Voltage Max Vgt: 1.5V

Peak Gate Power:

Peak Non Rep Surge Current Itsm 50Hz: 9A

Holding Current Max Ih: 5mA

No. of Pins: 3Pins

Operating Temperature Max: 110°C

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.
