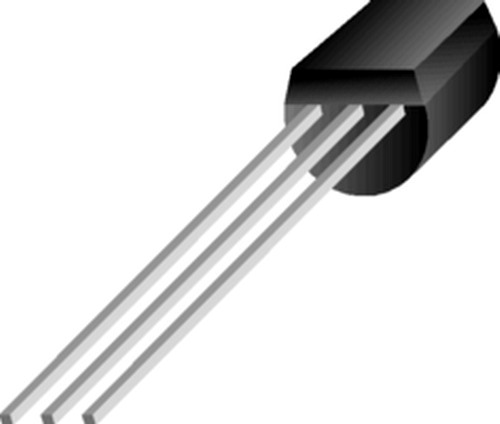

ZTX751, SI-P, Tranzistor, 60V, 2A, TO92,

Furnizor: DIODES INC.

ZTX751

 RoHS :   Da
Descriere
TRANSISTOR, PNP, E-LINE
 Transistor Polarity:PNP
 Collector Emitter Voltage V(br)ceo:60V
 Power Dissipation Pd:1W
 DC Collector Current:-2A
 DC Current Gain hFE:200
 Transistor Case Style:E-Line
 No. of Pins:3
 Collector Emitter Voltage Vces:500mV
 Continuous Collector Current Ic Max:2A
 Current Ic @ Vce Sat:2A
 Current Ic Continuous a Max:2A
 Current Ic hFE:500mA
 Gain Bandwidth ft Min:100MHz
 Gain Bandwidth ft Typ:140MHz
 Hfe Min:100
 No. of Transistors:1
 Package / Case:E-Line
 Pin Configuration:e
 Power Dissipation Pd:1W
 Power Dissipation Ptot Max:1W
 Termination Type:Through Hole
 Voltage Vcbo:80V
